Quick Details

  • Place of Origin: Shanghai, China (Mainland)
  • Brand Name: xixun
  • Model Number: K13
  • gray level: 4096
  • CPU: industrial level ARM9
  • maximum pixels: 640x480
  • scan type: all types
  • software: Led Editor V10
  • video decoding: hardware decoding
  • communication port: serial port/Ethernet/USB
  • communication type: 3G and Internet, LAN,
  • audio: USB sound card is optional
  • sensor: temperature, humidity and brightness

Packaging & Delivery

Packaging Details package led card with static free bag and inner box bubble
small carton contains one piece of led card, size:23x20x6cm
big carton contains at least 4 pieces of led card and other parts, like HUB and ribbon cable. size: 23x20x12cm
Delivery Time Shipped in 1 days after payment

K13 CONTROL CARD

Our Services


Technical Supports & SERVICES

Before-sales support

1. Communicate with customers via Email, Skype or Telephone, try to understand customers' detailed requests so that    recommend them the suitable product. Avoid to waste time and money.

2. Provide the Best Solution for customers's projects.

3. Provide various Solutions for Secondary Development requests, try our best to meet customers's Special requests.

After-sales Support

1. Provide Timely and Efficient Technical Support for our customers (24 hours) online, Save Time and Money.

2. Provide Complete User Manual including Documents and Videos for customers.

3. Totally Free Training for customers, Our Engineers will visit customers's companies or factories regularly, teach customers how to use our products and how to solve some simple problems.

4. Engineers will also visit our foreigner customers, check their Led display on site.

5. On line service for the setting  at any time.



Company Information

  As a professional supplier of led asynchronous control system, Shanghai Xixun Electronic Company has rich experience to innovate new products and introducing new technology into led display field.

 Xixun Company has successfully researched and developed a leading led display control system based on embedded CPU in China. With this led display control system, display effect of off-line system
would be the same as that of computer. Besides, by using embedded control system will reduce the cost of led display screen, which will extremely promote its applications in the fields of advertisement,
landscape and culture. Driven by embedded control technology, LED display products will become more intelligent, so that could be used in many new fields and improve people's lives. Also this kind of
advanced technology will become the third control mode after synchronous and asynchronous.




Shanghai Xixun Electronic Co. Ltd supplies series products of embedded LED control system and relative technology development service. Our company aims to pursue new technology and reliable quality,
so we will keep innovating new led control card  products and updating existing led control products gradually.

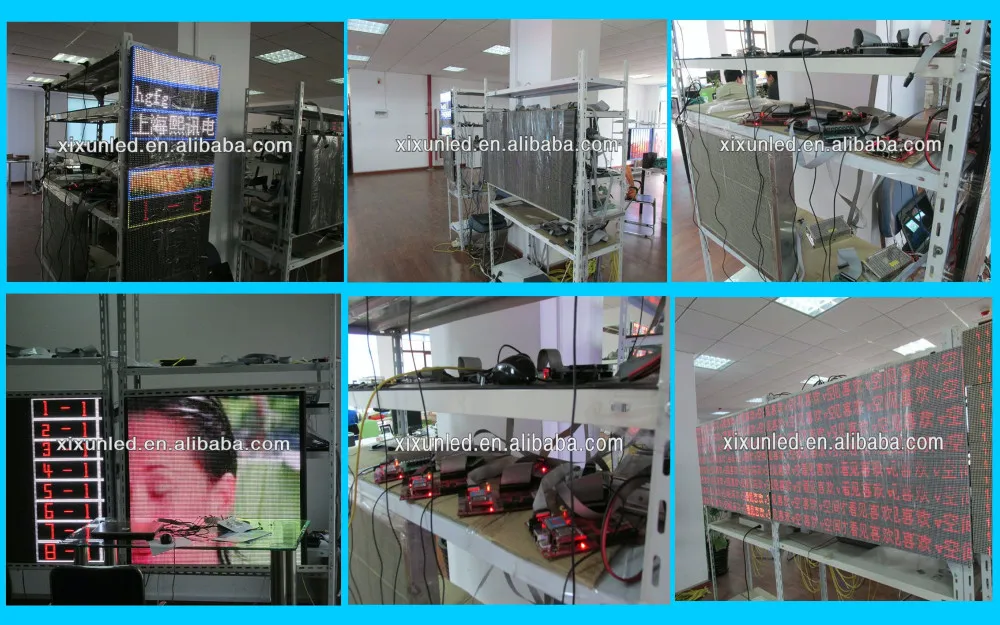

THE TESTING ROOM



Main products including :





  • Android system card ----------Y series
Model Max pixelRemark
Y101280x512

 Mobile phone to publish the program

Web serve station, on line edit system, professional on media  field

Android control system, easy for the secondary development

Wirelessb4G+3G+2G+Wifi

Y20540x960
3G Wilress connectione
3G /
3G+ Support  all frequnecy Channel
4G /

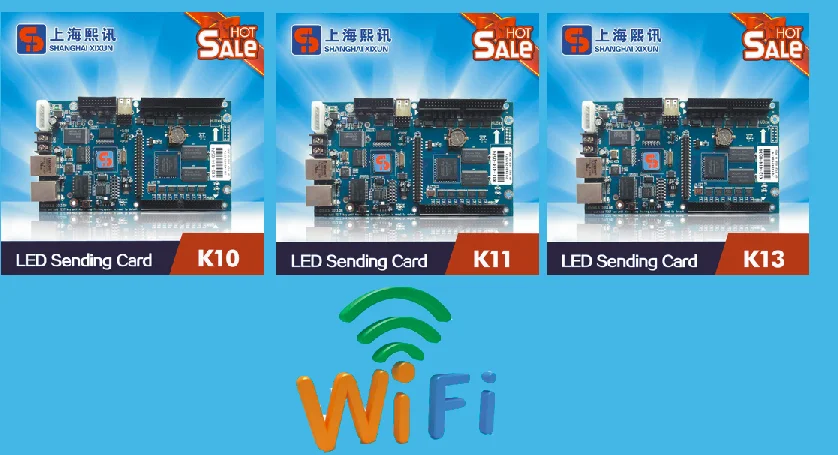

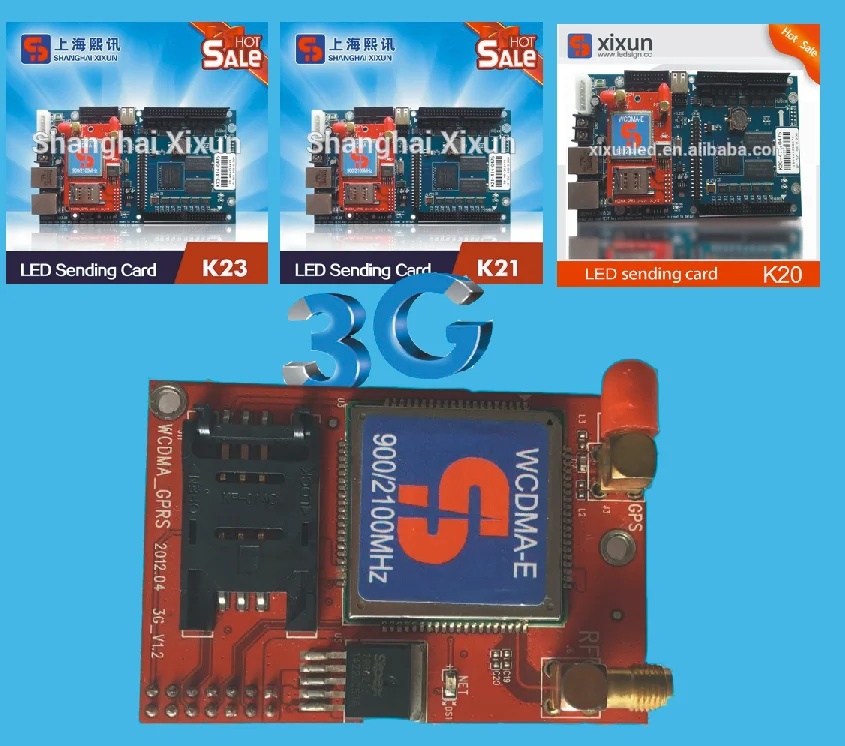

  • Sending  card--- K-series
ModelMax pixelRemark
K132400X160WIFI FUNCTION
K111200X320
K10640X480
k232400x1603G function
k221200x320
k20640x480

  • Receiving card: --- D10
ModelPixelRemark
D10320X256Connection with K and Y card serires . Max height support a HUB





  • Sending and Receiving card ---A-Series
ModelPixelRemarkApplication
A101024X512Use in single color/ double color/ Intergration 3G/ USB/LANDoor message dislay/ Traffic sign
A201024X128Intergartion 3G , 384x128 on best pixel, Support one hub Full color message board/ taxi led display/bus led displaly
A311024X256Intergration 3g, 256x256 on best pixel , Support two hubFull color led board/ small led display TV


  • Multi-media control system ---M-series and C-series
ModelPixelRemark
M311024x256Support two hub board
C101024x128Support one hub board


  • Accessories---Seonsor/ GPS/ / standard HUB
ModelFunctionRemark
R10Automatically on brightness .Support on M/ A serties and C10Accessories with the card system
R20Automatically  on brightness,temperature/ humidity/ frared
R30 L/T/HAlone function on brightness,tempertaure/ humidity/ frared /switch according to customer requirment
W10Wifi board with the atenna(support k13,k11,k10,M10,M31,C10
G20Gps (support all card)






Engineers have successfully researched and developed a leading national LED control system technology based on embedded CPU, which is easy to learn and use.

Off-line display quality will be the same as that of computers by adopting this technology.
Besides, this control system will reduce the cost of display screen, which will extremely extend the applications of LED display screen in the fields of advertisement, landscape and culture.

Driven by embedded control technology, LED information display products will become more intelligent, so that they could be used in many new fields and improve people's lives.

Also this kind of advanced technology will become the third control mode after synchronism and asynchronism.

  CERTIFICATE( 3G PATENT FOR LED DISPLAY CONTROLLER)









 K13 SPECIFICATION:

LED asynchronous sending card K13 works for full color led sign, maximum pixels 2400x128

work together with  receiving card D10 , D10 maximum pixels 320x256.



please check technical parameters in below:



Technical parameters of K13—sending card

Maximum pixels

2400x128

Integrate 3G modem

No

Cascading function

Yes

HUB interface

Standard hub, one sending card connects one HUB; one receiving card connects one HUB.

Video decoding

Hardware decoding

storage

500MB

gray level

4096

Refresh rate

120-480 MHZ

Special function

Support MBI 5041 IC

Scan type

Support all scan types like 1,2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16

GPS function

Yes

Communication ports

Serial port*/network port/USB port

Communication type

LAN/Internet/3G/GPRS/Wifi/RF

Audio

USB sound card optional

Display on schedule

Support

video format

support AVI,WMV,MPG,MOV,DAT,VOB,MP4,FLV

flash format

support GIF,SWF

image format

support BMP,JPG,GIF,WMF,ICO

text format

support TXT,RTF

display text

support single-line / multi-line / static text

Table

editing table randomly

Clock

support digital and analog clock

Remote management

Support publish message to multi-screen via one PC and upgrade firmware online

sensor

measure temperature and humidity, auto-measure brightness and exchange program by IR remote

upgrade storage

upgrade storage by U-disk

software

LED editor V10 and LEDset2.0 software

Stock

yes



D10 technical parameters in below:



technical parameters of D10—receiving card

Maximum pixels

320x256

Numbers

One sending card can work together with 256 pcs of D10 at most.





K13 has following advantages:



1. One sending card K13 can connect one HUB, will save one pcs of receiving card.

2.Integrates wifi modem to realize wireless communication, easy to install it and fits for centralized management via internet.

3.Support 4096 gray level for red, green and blue.

How to connect  and how to fit the display?





Re: LED asynchronous sending card K23 works for full color led sign.

maximum pixels 2400x128Dots, work together with receiving card D10



D10 maximum support pixels 320x256dots.





TO THE APPLICATION WITH 3G SYSTEM





TO THE APPLICATION WITH WIFI SYSTEM




Software screen shot:

















Case picture:











Packaging & Shipping

Outside package: standard carton

SIZE: 25*21*13cm

Weight: 2kgs





SHIP BY AIR/ SEA/DOOR TO DOOR

ANY QUESIONS PLEASE FEEL FREE LET US KNOW

THANKS!
